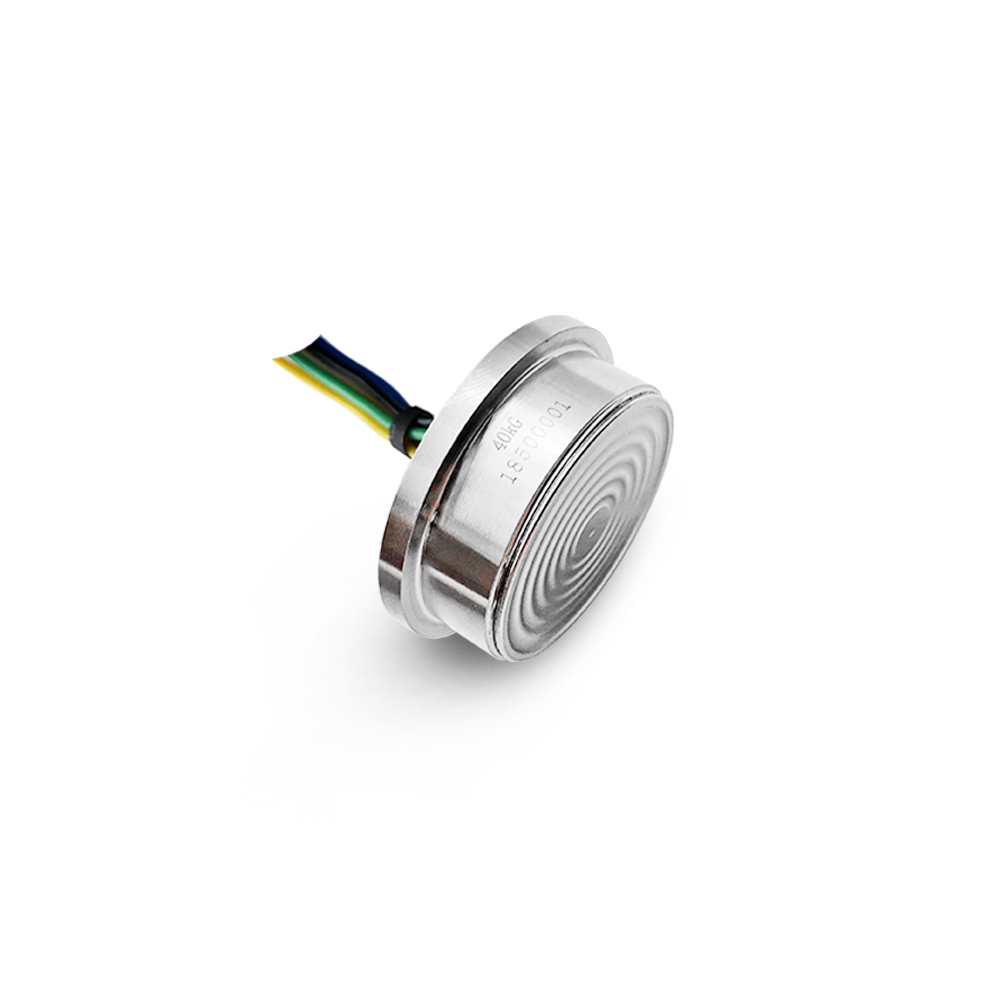

PCM91 Single Crystal Silicon Single Pressure Module

Product overview

The internal die of PCM91 monocrystalline silicon pressure module adopts a German imported MEMS monocrystalline silicon pressure die. The sensor signal is converted into a standard signal output through a dedicated signal processing module. After long-term aging and stability screening, the product performance is stable and reliable. At the same time, it can display on-site pressure, zero point, and full range migration.

The PCM91 single crystal silicon single pressure component installation interface form can be processed according to user requirements, and can also provide specifications compatible with other brands of transmitters. This series of products is widely used in industrial process control, petroleum, chemical, metallurgical and other industries.


Feature

Adopting advanced monocrystalline silicon single pressure sensors

Wide range coverage of 0-6kPa... 40MPa

Two wire system, 4 to 20mA@HART Protocol

Intelligent LCD meter head with backlight

It has both remote transmission and local zero and range adjustment

Complete variety, high precision, and good stability


Application

Process control fields in industries such as petroleum, chemical, metallurgy, electricity, food, papermaking, pharmaceuticals, machinery manufacturing, scientific experiments, and aviation and military applications


Product Parameters

Performance parameter

Range

±6kPa G±40kPa G±100kPa G-100250kPa G0100kPa A0250kPa A

-0.11MPa G-0.13MPa G010MPa S020MPa S040MPa S

Pressure type

Gauge pressure, absolute pressure, sealed pressure

Power supply

12V32Vrecommend 24V

Output

420mA+HART protocol

Accuracy

6kPa±0.1%FSother ranges±0.075%FS

Temperature drift

±6kPa±0.3%FSother ranges±0.25%FS -2070℃

Ambient temperature

-30℃80℃; with display -30℃70℃

Medium temperature

-40℃125℃

Storage temperature

-40℃85℃

Insulation resistance

≥200MΩ/500VDC

Vibration

20g205000Hz)

Shock

100g11ms

Overload pressure

Refer to range selection

Long term stability

±0.2%FS/year

Material

Isolated diaphragm316LHa C≤10MPa

Media compatibility

Various medium compatible with 316L and fluororubber


Production process

PCM90D Monocrystalline Silicon Differential Pressure Component with Clamp Block


                                                   Testing Equipment


PCM90D Monocrystalline Silicon Differential Pressure Component with Clamp BlockPCM90D Monocrystalline Silicon Differential Pressure Component with Clamp Block

PCM90D Monocrystalline Silicon Differential Pressure Component with Clamp BlockPCM90D Monocrystalline Silicon Differential Pressure Component with Clamp Block


Certificate

PCM90D Monocrystalline Silicon Differential Pressure Component with Clamp Block

Company profile

PCM580 Digital Pressure Gauge (Φ80mm)

Nanjing Wotian Technology Co., Ltd. was established in 2005. It is an outstanding top sensor mkanufacturing enterprise in Jiangning District. The company was rated as Nanjing Engineering Technology Research Center and Nanjing. Municipal Engineering Research Center, Nanjing Enterprise Technology Center, Nanjing Postdoctoral Innovation Demonstration Base; is the unit that formulated the national standards for "Silicon Piezoresistive Pressure Sensitive Chips" and "Silicone Pressure Sensors". It is the leading domestic manufacturer of pressure sensors, with core technology of diffused silicon pressure sensor pressure transmitter, level sensor and temperature sensor and existing staff 305. The annual production of pressure sensors is more than 2 million. The products have been exported to more than 70 countries and regions. Nanjing Wotian was awarded the honorary title of "Sensor Application Program Demonstration Enterprise" by the Ministry of Industry and Information Technology in 2019. "Creating value for customers" is the goal that enterprises always pursue. As leading manufacturer in the domestic pressure sensor industry, the company will revitalize China's pressure sensor business as its own responsibility, work diligently, step by step, strive to make pressure sensors better, and provide customers with cost-effective sensors.  Nanjing Wotian Technology Co., Ltd. has passed ISO9001-2015 quality management system certification and TS16949 certification for the automotive industry.
